Slinger Remote Battery Replacement Guide Pickleball

Supplies Needed:

• Two CR-2016 batteries
• Star screwdriver (#00x50mm)
• Small pen (to sync the remote, if necessary)

Instructions:

1. Remove the Back Cover:

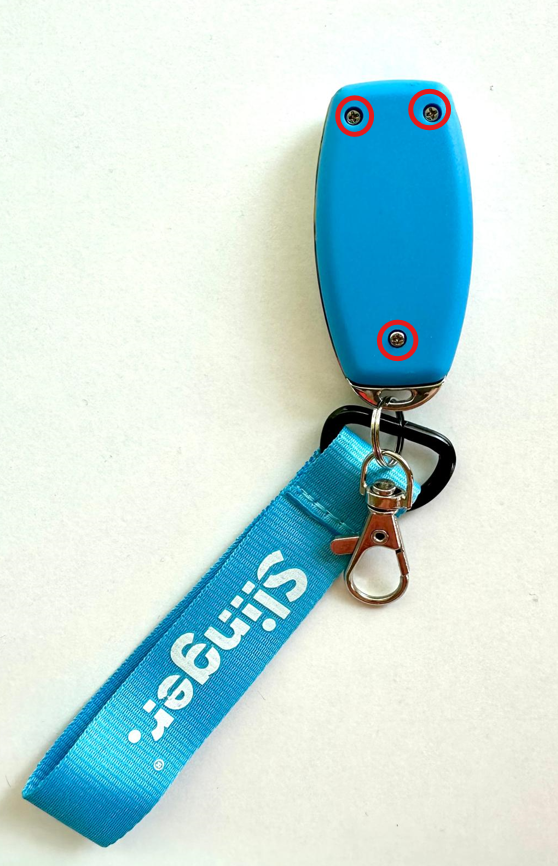

   • Using the star screwdriver, remove the 3 screws from the back of the remote.
   • Gently lift the back casing off.

2. Disassemble the Remote:

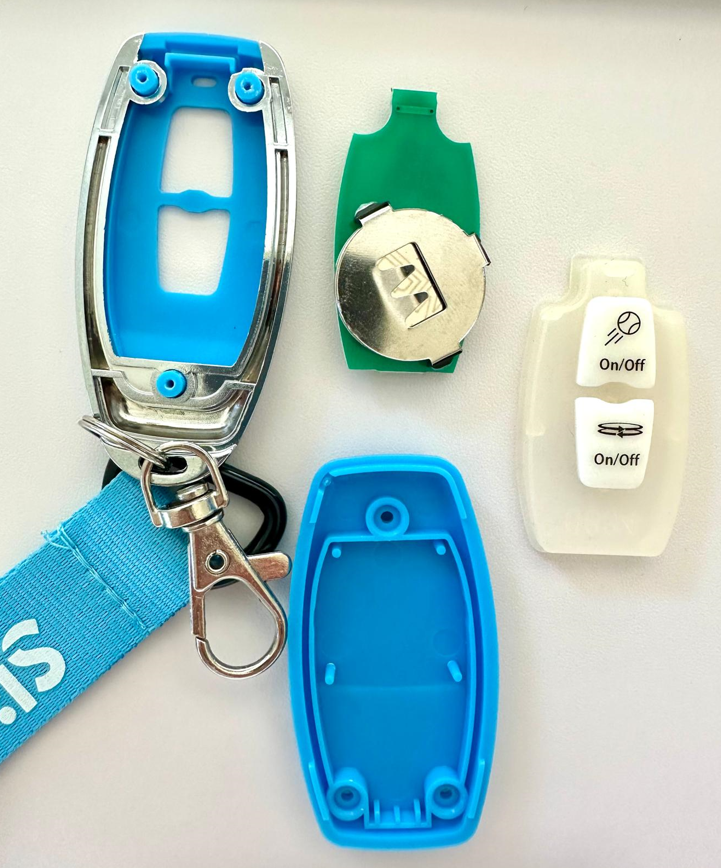

   • Separate the pieces of the remote as shown in the image below.

3. Remove the Old Batteries:

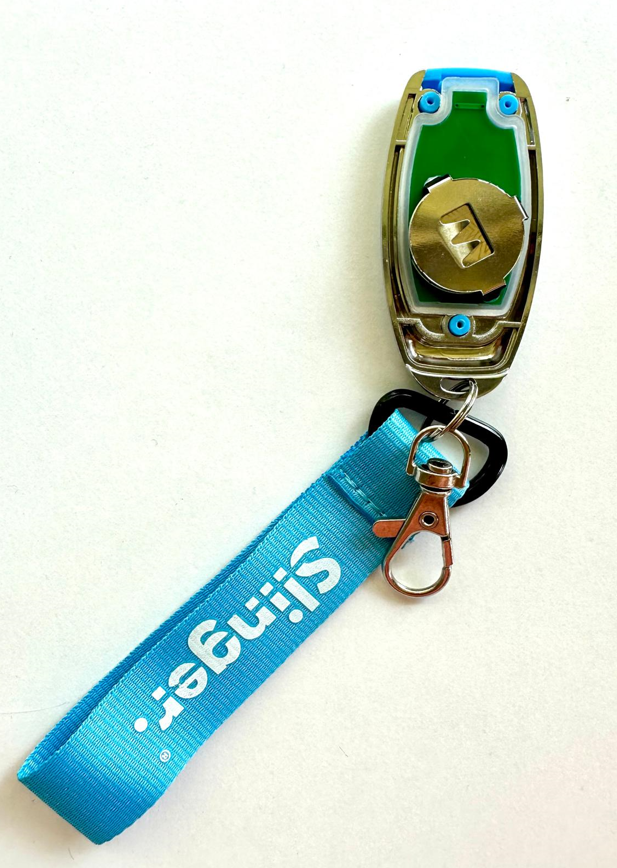

   • Slide the 2 batteries out of the battery compartment.

4. Insert New Batteries:

   • Place the 2 new CR-2016 batteries into the compartment, making sure the "+" side is facing up.

5. Reassemble the Remote:

   • Reattach the back casing and insert the 3 screws to secure it.

6. Test the Remote:

   • Press the power button to see if the remote turns the machine on. If it does, the replacement is complete.
   • If the remote does not turn the machine on, follow the instructions to sync the remote by visiting this link: Syncing Tennis Remote to Launcher.

If the steps outlined above do not solve your issue; please reach out to support@slingerbag.com and a member of our support team will assist you.
