How to Charge the Slinger Tennis Launcher (Outside of the Bag)

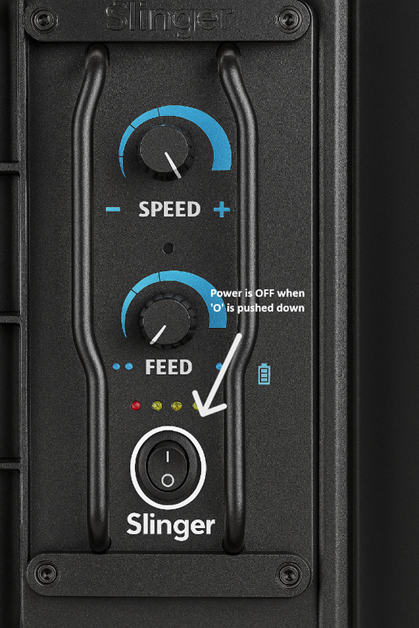

Ensure the launcher’s power switch is in the OFF position before starting.

1. 📦 Unbox & Assemble the Charger

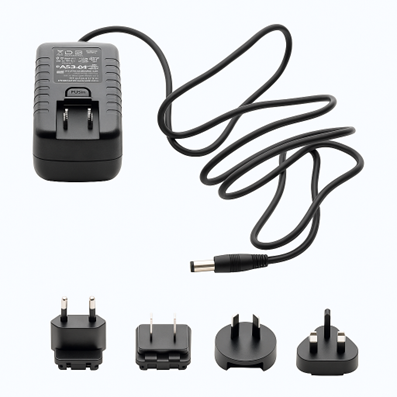

• Remove the charger and plug adapters from the box.
• Choose the correct adapter for your wall outlet.

• Firmly press the adapter into the cradle of the charger until you hear a click and it sits flush.



  2. 🔧 Remove the Battery

• Locate the battery on the lower left side of the launcher.

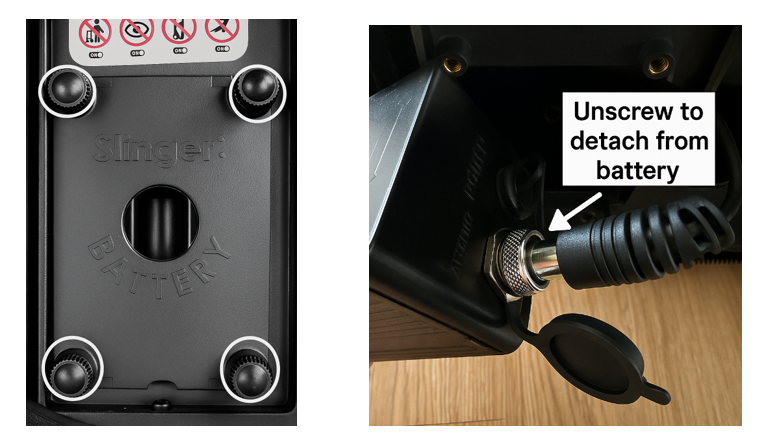

• Unscrew the 4 thumb screws at the corners of the cover.
  (Refer to the image with white circles for guidance.)
• Gently pull the battery out from the compartment.

• At the back of the battery, unscrew the round metal nut to detach the cable.





  3. 🔌 Plug in the Charger

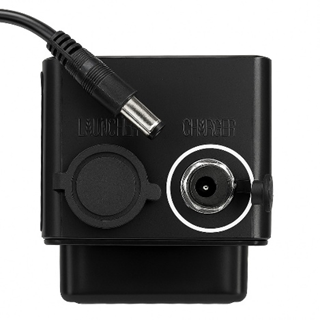

• On the battery, uncover the port labeled ‘CHARGER’.
• Insert the charger cable into this port.
• Plug the other end of the charger into a wall outlet.



4. ✅ Check the Charging Indicator

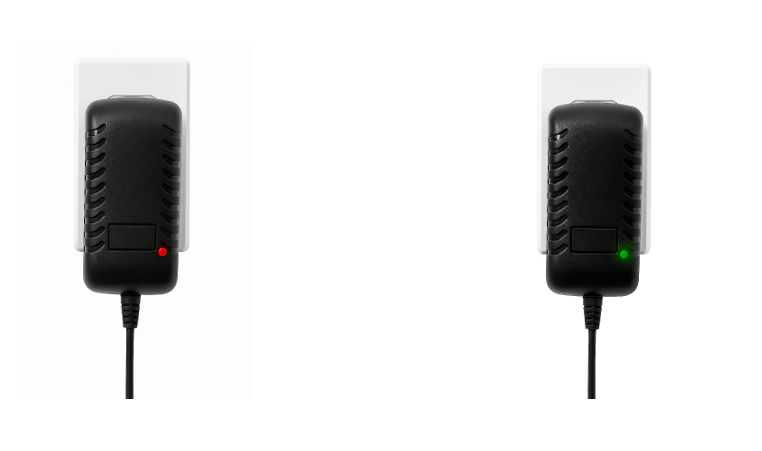

• Red Light = Charging in progress                                Green Light = Fully charged
